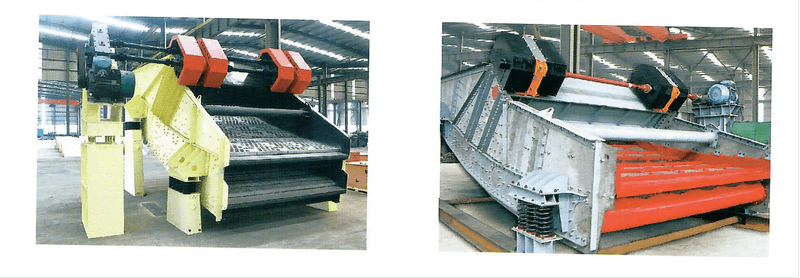

ZXD series banana type linear vibrating screen is a new kind of latest designed sieving machinery also called “banana screen”, it is mainly used in coal for the mid-size and fine material classification, dewatering, desliming, and reagent, as well as widely in metallurgy, mine, road building, electric power, chemical, etc.
This series vibrating screen is designed based on the advanced technology of screening machine at home and abroad，screen deck can be divided into multi zones, with large capacity, high sieving efficiency, box type vibrator is used as a vibration source. It adopts the special bearing of vibration machinery, large loading force, long service life. The vibrator is mounted on the kingpost, which provides the vibrating machine a good stress state. The machine is jointed by ring-grooved rivets, its structure is simple, compact, firm, reliable, and easy to maintain. This series of vibrating machines use a rubber spring to buffer, which keeps the machine running smoothly with low noise when passing through the resonance region.
The screen machine can be single or double decks.
Screen deck can be bar strip, punching, polyurethane, and so on, it can be designed as customers’ requirements.
Feeding box and base will not be provided if customers have no request.
The rated voltage of the motor is 380V, Explosion-proof motor or different rated voltage motors are optional.
| Model | Screening surface | Inlet size
(mm) |
Capacity
(cbm/h) |
Motor | |||
| Layers | Area(sqm) | Mesh (mm) | Power(kw) | Qty | |||
| ZXD1261 | 1 | 7.32 | 0.25-13 | <100 | 5-244 | 11 | 1 |
| 2ZXD1261 | 2 | 7.32*2 | Upper:3-50
Lower:0.25-13 |
<100 | 45-550 | 15 | 1 |
| ZXD1861 | 1 | 11.0 | 0.25-13 | <100 | 6.2-305 | 18 | 1 |
| 2ZXD1861 | 2 | 11.0*2 | Upper:3-50
Lower:0.25-13 |
<100 | 56-680 | 22 | 1 |
| ZXD2461 | 1 | 14.6 | 0.25-13 | <100 | 5-244 | 22 | 1 |
| 2ZXD2461 | 2 | 14.6*2 | Upper:3-50
Lower:0.25-13 |
<100 | 45-550 | 30 | 1 |
| ZXD3061 | 1 | 18.3 | 0.25-13 | <100 | 6.2-305 | 30 | 1 |
| ZXD3073 | 1 | 21.9 | 0.25-13 | <100 | 6.2-305 | 30 | 1 |
| ZXD3661 | 1 | 22.0 | 0.25-13 | <100 | 7.4-366 | 45 | 1 |
| ZXD3673 | 1 | 26.3 | 0.25-13 | <100 | 8.5-366 | 45 | 1 |
| ZXD4361 | 1 | 26.2 | 0.25-13 | <100 | 8.5-366 | 55 | 1 |
| ZXD4373 | 1 | 31.4 | 0.25-13 | <100 | 11-420 | 55 | 1 |
