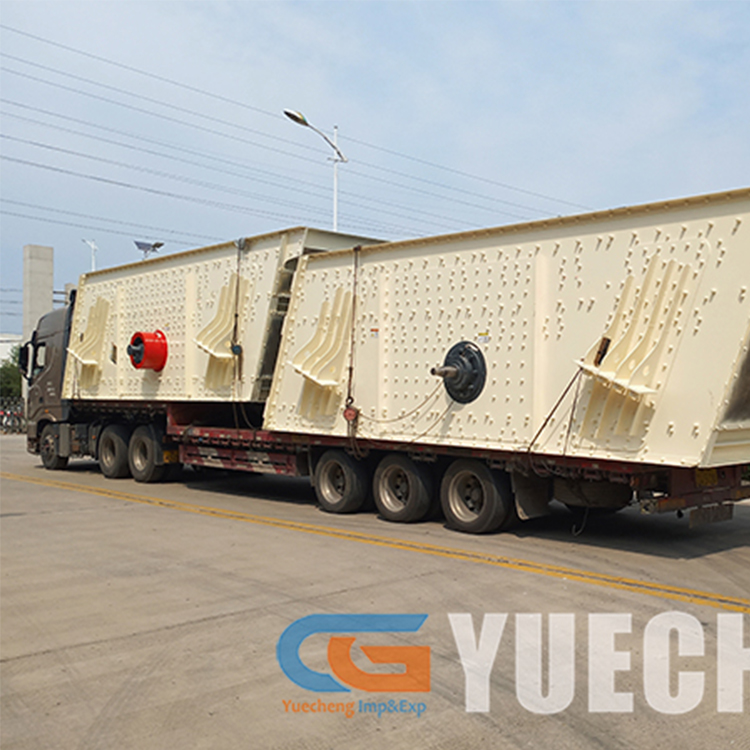

YA series circular vibrating screen is an improvement machine based on the traditional YA series vibrating screen,;
It is used to make a dry material classification for coal, metallurgy, road construction, mine, building material, electric power, and chemicals, etc.
According to the density of the material to be sieved, It can be divided into YA and YAH. To YA, Max feeding size is 200mm, but the YAH is 400mm.
This vibrating screen belongs to self- centering circular vibrating screen, It adopts the vibrator with the eccentric shaft, the bearing with large clearance is installed in vibrator inside, low noise and long operating life, easy to maintain.
1.Screens can be single, double, and three decks.
2.Sieving surface structure can choose punching, weaving, polyurethane, or bar strip.
3.The electric motor can be mounted at the left or the right of the screen machine.
4.Feeding box is altered native. It will not be supplied if there is no request.
5.Foundation bolts or embedded steel plate owned by the user.
| Model | Screening Surface | Inlet size
(mm) |
Capacity
(t/h) |
Vibration time
(r/min) |
Double-amplitude
(mm) |
Motor | |||
| Decks | Area
(sqm) |
Mesh size(mm) | Power
(kw) |
Qty | |||||
| YA1536 | 1 | 5.4 | 6-50 | <=200 | 100-200 | 730 | 8-11 | 7.5 | 1 |
| 2YA1536 | 2 | 5.4 | 6-50 | <=200 | 150-250 | 730 | 8-11 | 11 | 1 |
| YA1542 | 1 | 6.5 | 6-50 | <=200 | 110-220 | 730 | 8-11 | 7.5 | 1 |
| 2YA1542 | 2 | 6.5 | 6-50 | <=200 | 160-250 | 730 | 8-11 | 11 | 1 |
| YA1836 | 1 | 6.5 | 6-50 | <=200 | 150-250 | 730 | 8-11 | 11 | 1 |
| 2YA1836 | 2 | 6.5 | 6-50 | <=200 | 200-300 | 730 | 8-11 | 15 | 1 |
| YAH1836 | 1 | 6.5 | 30-150 | <=400 | 250-600 | 730 | 8-11 | 11 | 1 |
| 2YAH1836 | 2 | 6.5 | 30-200 | <=400 | 250-600 | 730 | 8-11 | 15 | 1 |
| YA1842 | 1 | 7.3 | 6-50 | <=200 | 220-400 | 730 | 8-11 | 15 | 1 |
| 2YA1842 | 2 | 7.6 | 6-150 | <=200 | 280-500 | 730 | 8-11 | 15 | 1 |
| YAH1842 | 1 | 7.6 | 6-150 | <=400 | 250-800 | 730 | 8-11 | 11 | 1 |
| 2YAH1842 | 2 | 7.6 | 30-150 | <=400 | 250-800 | 730 | 8-11 | 15 | 1 |
| YA1848 | 1 | 8.6 | 30-150 | <=200 | 150-525 | 730 | 8-11 | 15 | 1 |
| 2YA1848 | 2 | 8.6 | 6-50 | <=200 | 150-525 | 730 | 8-11 | 15 | 1 |
| YAH1848 | 1 | 8.6 | 6-50 | <=0-150 | 350-1000 | 730 | 8-11 | 15 | 1 |
| 2YAH1848 | 2 | 8.6 | 30-150 | <=400 | 350-1000 | 730 | 8-11 | 15 | 1 |
| YA2148 | 1 | 10 | 30-150 | <=200 | 180-630 | 730 | 8-11 | 15 | 1 |
| 2YA2148 | 2 | 10 | 6-50 | <=200 | 180-630 | 730 | 8-11 | 18.5 | 1 |
| YAH2148 | 1 | 10 | 6-50 | <=400 | 270-1200 | 730 | 8-11 | 18.5 | 1 |
| 2YAH2148 | 2 | 10 | 13-200 | <=400 | 270-1200 | 730 | 8-11 | 22 | 1 |
| YA2160 | 1 | 12.6 | 30-150 | <=200 | 230-800 | 730 | 8-11 | 22 | 1 |
| 2YA2160 | 2 | 12.6 | 3-80 | <=200 | 230-800 | 730 | 8-11 | 22 | 1 |
| 3YA2160 | 3 | 12.6 | 6-50 | <=200 | 350-1500 | 730 | 8-11 | 22 | 1 |
| YAH2160 | 1 | 12.6 | 6-50 | <=400 | 350-1500 | 730 | 8-11 | 22 | 1 |
| 2YAH2160 | 2 | 12.6 | 30-150 | <=400 | 200-700 | 730 | 8-11 | 30 | 1 |
| YA2448 | 1 | 11.5 | 6-50 | <=200 | 310-1300 | 730 | 8-11 | 30 | 1 |
| YAH2448 | 1 | 11.5 | 6-50 | <=200 | 310-1300 | 730 | 8-11 | 30 | 1 |
| 2YAH2448 | 2 | 11.5 | 30-150 | <=400 | 260-840 | 730 | 8-11 | 22 | 1 |
| YA2460 | 1 | 14.4 | 30-150 | <=200 | 260-840 | 730 | 8-11 | 30 | 1 |
| 2YA2460 | 2 | 14.4 | 6-50 | <=200 | 260-840 | 730 | 8-11 | 30 | 1 |
| 3YA2460 | 3 | 14.4 | 6-50 | <=200 | 400-1700 | 730 | 8-11 | 30 | 1 |
| YAH2460 | 1 | 14.4 | 30-150 | <=400 | 400-1700 | 730 | 8-11 | 30 | 1 |
| 2YAH2460 | 2 | 14.4 | 30-150 | <=400 | 400-1700 | 730 | 8-11 | 30 | 1 |
| Model | Screening surface | Inlet size
(mm) |
Capacity
(cbm/h) |
Motor | ||||
| Layers | Area
(sqm) |
Inclination
(degree) |
Mesh
(mm) |
Power(kw) | Qty | |||
| DYK3045 | 1 | 13.5 | 20 | 3-80 | <250 | 45-750 | 30 | 1 |
| 2DYK3045 | 2 | 13.5 | 20 | Upper:25-100
Lower:3-50 |
<300 | 375-1200 | 37 | 1 |
| DYK3052 | 1 | 15.75 | 20 | 3-80 | <250 | 45-750 | 30 | 1 |
| 2DYK3052 | 2 | 15.75 | 20 | Upper:25-100
Lower:3-50 |
<300 | 375-1200 | 37 | 1 |
| DYK3060 | 1 | 18 | 20 | 3-80 | <250 | 45-750 | 30 | 1 |
| 2DYK3060 | 2 | 18 | 20 | Upper:25-100
Lower:3-50 |
<300 | 375-1200 | 45 | 1 |
| DYK3652 | 1 | 18.9 | 20 | 3-80 | <250 | 54-860 | 45 | 1 |
| 2DYK3652 | 2 | 18.9 | 20 | Upper:25-100
Lower:3-50 |
<300 | 450-1440 | 30 | 2 |
| DYK3660 | 1 | 21.6 | 20 | 3-80 | <250 | 54-860 | 45 | 1 |
| 2DYK3660 | 2 | 21.6 | 20 | Upper:25-100
Lower:3-50 |
<300 | 450-1440 | 30 | 2 |
| DYK3675 | 1 | 27 | 20 | 3-80 | <250 | 54-860 | 30 | 2 |
| 2DYK3675 | 2 | 27 | 20 | Upper:25-100
Lower:3-50 |
<300 | 450-1440 | 37 | 2
|
