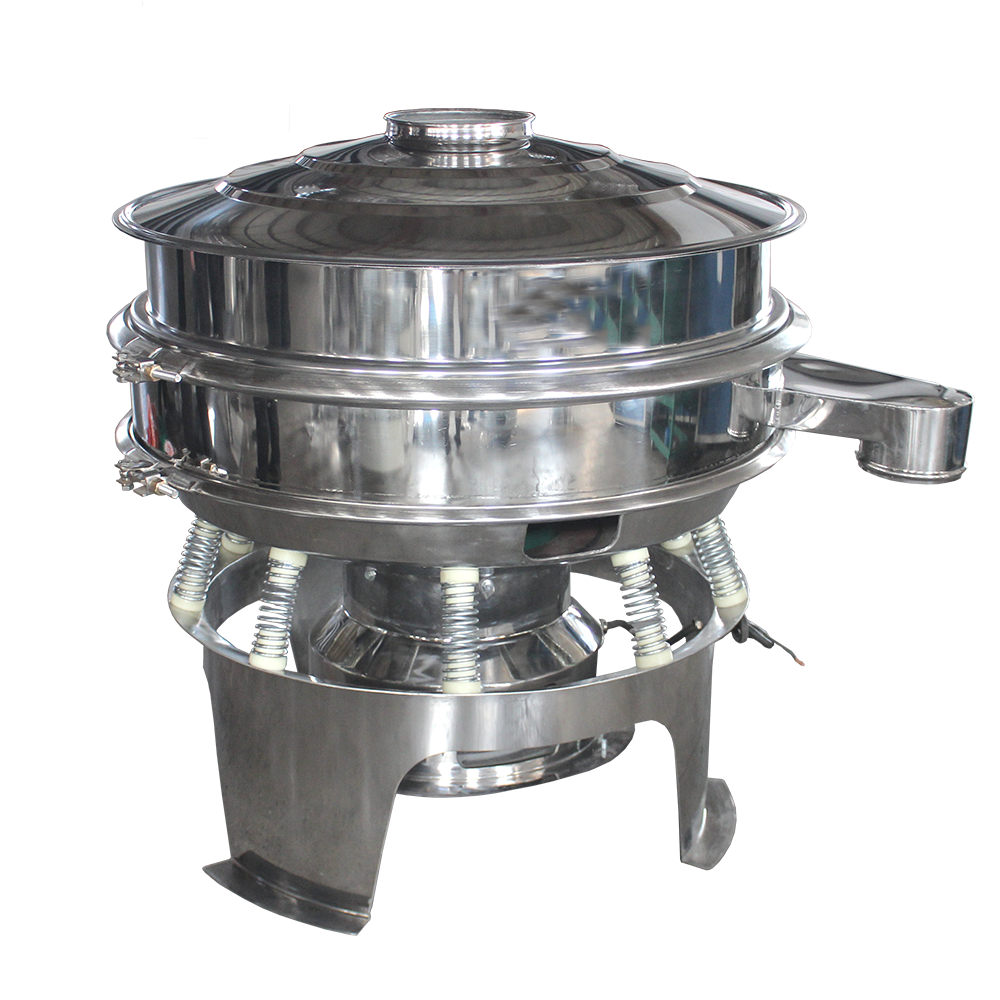

Ultrasonic vibrating screen for pharmacy is able to convert electric energy with 200V, 50Hz or 110V, 60Hz into high-frequency electric energy with 36KHz and then puts into ultrasonic energy exchange to make it change into mechanical vibration with 36-40KHz and attains the purpose of high-efficiency sieve and cleaning mesh, which makes it easy to sieve the superfine powder. This system uses a low amplitude, high frequency ultrasonic vibrating wave(mechanical wave) on the sieve mesh by the traditional? vibrating sieve to improve the sieving abilities of superfine powder. This product is suitable for users who demand high additional value and fine powder.
The ultrasonic vibrating wave(mechanic wave) added on the sieve mesh makes superfine powder accept the giant ultrasonic acceleration which restrains blockage factors which include adhesion, friction, pancake, wedging, etc, and improves sieving and cleaning efficiency. All of our sieve machines meet complete connection, no gap no waste.
1. Increases capacity—Ultrasonic can improve sieving capacity up to 10 times by enabling powders to pass through screens faster.
2. Reduces production downtime—Prevents screen overload and requires a lower frequency of mesh cleaning.
3. Improve your product quality—Sieve on fine meshes ( as low as 20 um) and obtain a better quality final product.
4. Lowers running cost—Reduces mesh damage and the need for repairs and replacement mesh caused by mechanical cleaning systems.
| Item | Data | Item | Data |
| Power | 220-240V/50Hz 60Hz | Dimension | 300*300*300mm |
| Frequency | 35Khz | IP Class | IP65 |
| Working Mode | continuous | Adjustment | 50-100% |
| Working Temperature | -10~45 degree C | Resonator | Plug type |
| Model | Power
(Kw) |
Screen surface diameter
(mm) |
Effective area
(m2) |
Dimension
(mm) |
Layer |
| SC-600-1S
SC-600-2S SC-600-3S |
0.55 | 550 | 0.2124 | 800*800*680
800*800*780 800*800*880 |
1
2 3 |
| SC-800-1S
SC-800-2S SC-800-3S |
0.75 | 750 | 0.4072 | 900*900*780
900*900*930 900*900*1080 |
1
2 3 |
| SC-1000-1S
SC-1000-2S SC-1000-3S |
1.5 | 950 | 0.6221 | 1160*1160*880
1160*1160*1030 1160*1160*1180 |
1
2 3 |
| SC-1200-1S
SC-1200-2S SC-1200-3S |
1.75 | 1150 | 0.9331 | 1360*1360*980
1360*1360*1160 1360*1360*1360 |
1
2 3 |
| SC-1500-1S
SC-1500-2S SC-1500-3S |
2.2 | 1450 | 1.5175 | 1850*1850*1130
1850*1850*1330 1850*1850*1550 |
1
2 3 |
