Tp Series Feeder Breaker For Coal Mine

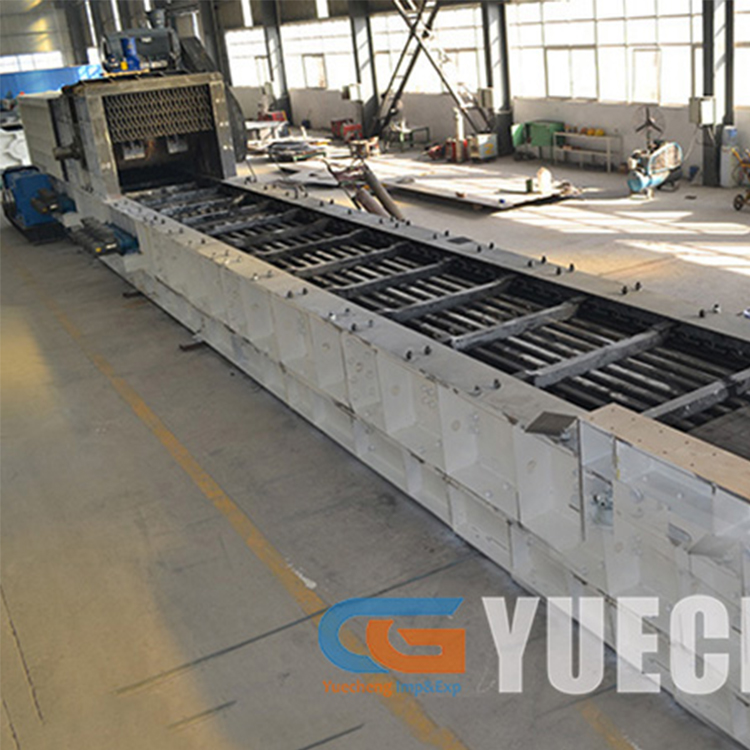

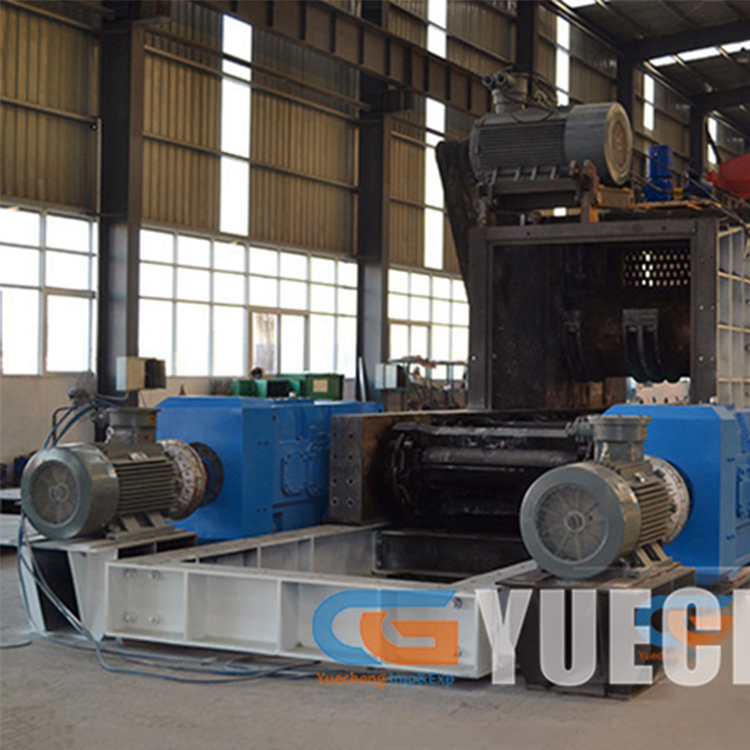

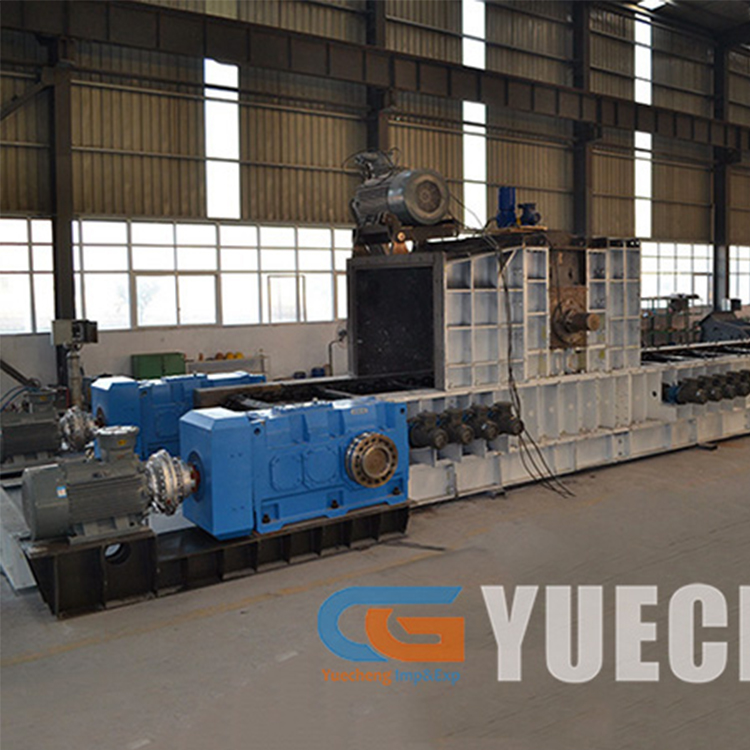

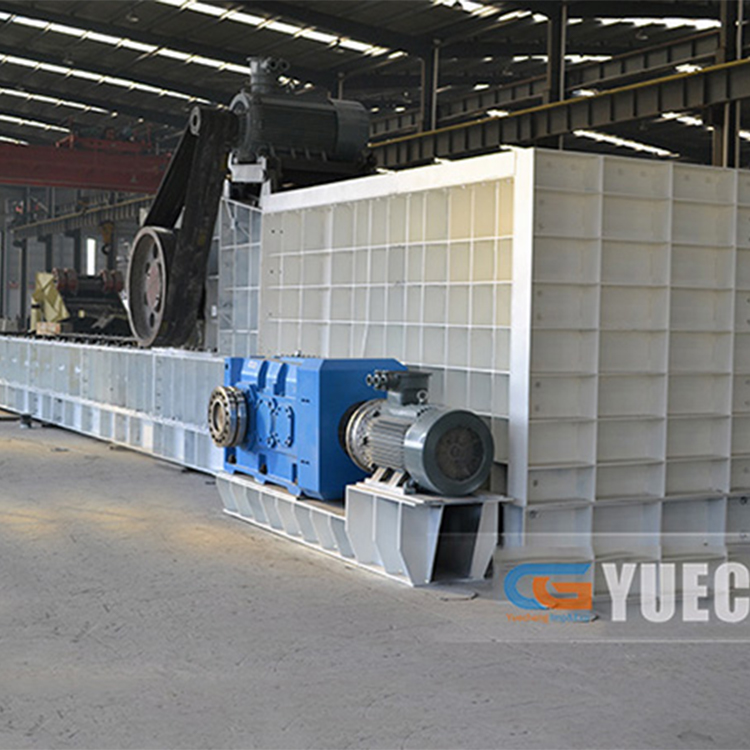

The feeder breaker is the second generation upgrade product of our company, it is the new product that after optimizing and upgrading the structure and property, which integrates conveying, screening, crushing. It installs roll screen and grate screen. Hammer crusher or teeth roller crushing part. The product has a simple structure, lightweight, superior crushing capacity of bulk materials. It was welcomed by users since put on the market.

Send Inquiry Chat Now


The compact design of level material flow technology, low feed height, and wide range of options market can be widely used in open-pit mines.
The feeder breaker integrates conveying, screening, and crushing, which has high working efficiency.
Output size and crushing ratio can be adjusted, and the approach is simple and convenient operation.
The feeder breaker is movable, which has a low requirement to the base condition and are suitable for poor working condition.
The feeder breaker has national patent innovation technology.


Model Capacity Input size Inlet size Particle size
Coal(t/h) LX W X L mm H X W mm mm
TP12 500-1000 800X950X∞ 1790X1350 95%<200
TP14 700-1200 1000X1400X∞ 1790X1550 95%<300
TP16 900-1400 1200X1600X∞ 1790X1750 95%<300
TP20 1100-2500 1200X1800X∞ 1790X2150 95%<300
