S49 VIBRATING SCREEN
S49 vibrating screen is a kind of mature technology, general and tend to be standardized classic sieving equipment, which can meet the requirements for most materials in grading granules, sieving powders and solids-liquids separation. S49 vibrating screen is one traditional filter, impurities removal sieve and sizes grading machine, widely used all over the world.
S49 series vibrating screen machine are available in diameters:
600mm, 800mm,1000mm,1200mm,1500mm
Technical parameters
| Model |
S49-600 |
S49-800 |
S49-1000 |
S49-1200 |
S49-1500 |
| Diameter(mm) |
600 |
800 |
1000 |
1200 |
1500 |
| Mesh area(sq.m) |
0.2 |
0.4 |
0.6 |
0.9 |
1.5 |
| Mesh |
6mm – 0.028mm(500# mesh)/wire mesh, 7mm – 30mm/punching hole |
||||
| Layer(s) |
1-3 |
1-3 |
1-3 |
1-3 |
1-3 |
| Power(kw) |
0.25 |
0.75 |
0.75 |
2.2 |
2.2 |

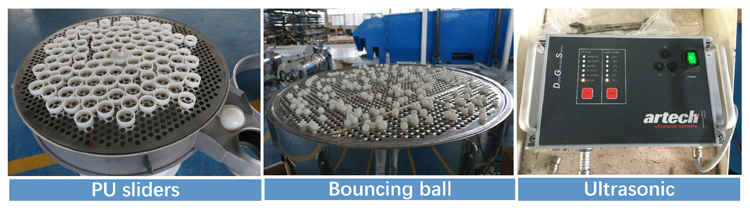

Mesh cleaning: PU sliders, Silicone bouncing balls, and Ultrasonic system
