Working Principle:

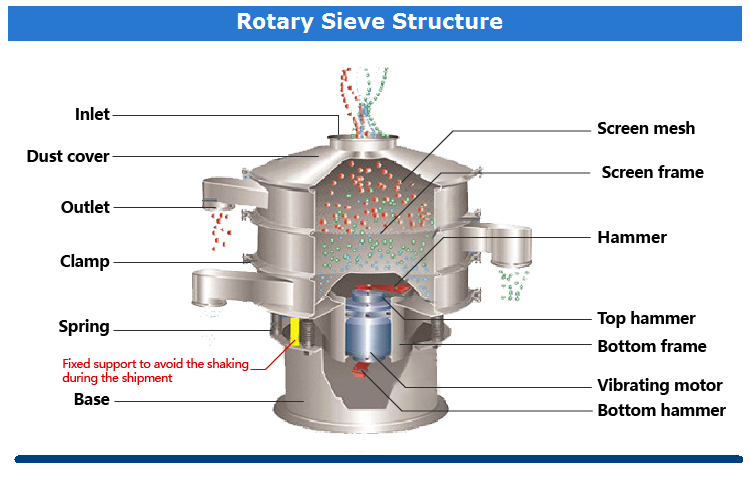

Vertical motor is used as the excitation source, and the upper and lower ends of the motor are installed with eccentric weight which can transform the rotation force of the motor into horizontal, vertical, and inclined directions, meanwhile transfer this motion to the screen surface, then the screen drive the material do same motion as sieve do, it is also called rotary vibrating screen.

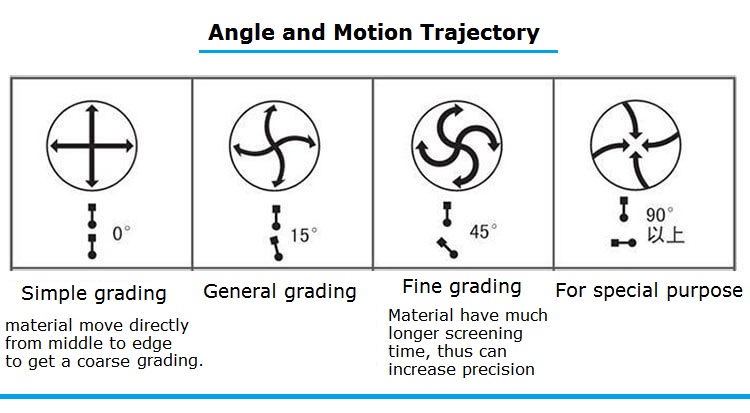

Adjust the phase angle of the upper and lower counterweight to change the trajectory of material on the screen.
|
Model No.
|
Power(Kw)
|
Screen surface diameter
(mm) |
Effective area
(m2)
|
Dimension
(mm)
|
Layer
|
|
SC-600-1S
SC-600-2S SC-600-3S |
0.55
|
550
|
0.2374
|
800*800*680
800*800*780
800*800*880
|
1-3
|
|
SC-800-1S
SC-800-2S SC-800-3S |
0.75
|
750
|
0.4415
|
900*900*780
900*900*930 900*900*1080 |
1-3
|
|
SC-1000-1S
SC-1000-2S SC-1000-3S |
0.75
|
950
|
0.7084
|
1160*1160*880
1160*1160*1030 1160*1160*1180 |
1-3
|
|
SC-1200-1S
SC-1200-2S SC-1200-3S |
1.5/2.2
|
1150
|
1.0380
|
1360*1360*980
1360*1360*1160 1360*1360*1360 |
1-3
|
|
SC-1500-1S
SC-1500-2S SC-1500-3S |
1.5/2.2
|
1450
|
1.6500
|
1850*1850*1130
1850*1850*1330 1850*1850*1550 |
1-3
|
|
SC-1800-1S
SC-1800-2S SC-1800-3S |
2.2
|
1750
|
2.4041
|
|
1-3
|
