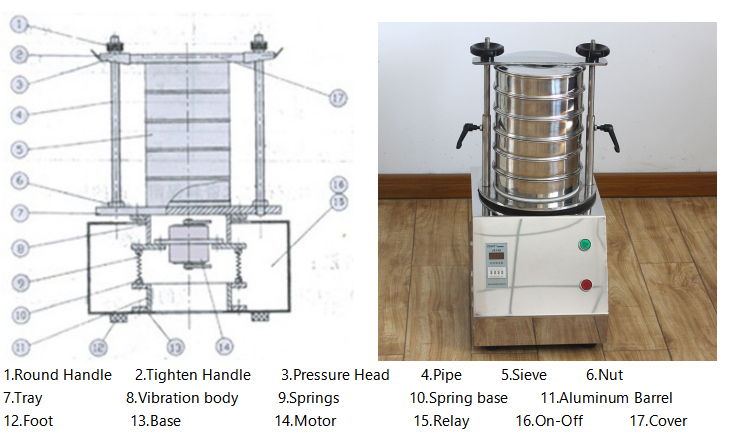

Lab Testing Sieve

Lab test vibrating sieve automatic sieve shaker machine are suitable for research and development, quality control of raw materials, intermediate products and end products, and production control. Sieve shakers are designed for grain size determination, separation, and fractionation of powders, bulk goods, and suspensions. They also have high load endurance, extremely quiet operation, and short sieving times with exact separation. Sieving machines feature a maintenance-free electromagnetic drive and three-dimensional movement of the sieve stock due to the tilted spring arrangement. The vibration height can be set infinitely from 0–3mm. These machines are suitable for both wet and dry sieving, and meet all ergonomic requirements for a modern laboratory.

Send Inquiry Chat Now

Application

1)Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder,paint
2)Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup,bread crumbs
3)Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder
4)Medicinal industry: all kinds of medicine
5)Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon
And many more….
No
Name
Unit
Parameters
1
Working diameter
mm
φ200/φ300
2
Mesh Size
mm
0.025~3
3
Power
kw
0.12
4
Noise
db
<50
5
Amplitude
mm
0~3
6
Vibration Frequency
t/min
1400
7
Dimension
mm
350:380:300+N*50
8
Voltage
V/Kz
220;50
9
Weight
Kg
35
