Gyratory Screen Machine For Quartz Sand

FYBS square swing screen is a kind of high-efficiency screening equipment with high precision and large output, which is widely used in petroleum fracturing sand, chemical industry, gold treatment, non-ferrous metals, non-ferrous metals, food, abrasive and other industries, Chemical (chemical fertilizer, resin, melamine, soda, etc.), food (starch, salt, sugar, milk powder, etc.), metallurgy, non-ferrous metals, non-ferrous metals, magnetic materials, etc.

Send Inquiry Chat Now

Features:

According to the motion track of the shaking body of the sieve machine, the FYBS square pendulum screen is also called reciprocating screen, and the vibration force produced by its driving device is a dynamic force that changes regularly around the fixed axis and its essence is the reciprocating inertia force formed by the rotation of the eccentric wheel around the fixed axis. According to the structural characteristics and working principle of the FYBS square pendulum, the sieve surface is generally horizontal or slightly inclined.

The working principle of the FYBS square swing screen is that after the start of the: screen machine, the shaking body of the screen machine is reciprocating under the action of inertia force, and the screen box drives the screen surface to shake periodically so that the material on the screen moves forward with the screen box. Discharge, and finally complete the screening work.

From the structure and working principle of the FYBS square swing screen, it can be seen that the eccentric wheel distance material motion track and the retention time of the material on the screen surface have a vital effect, that is, the opposite effect on the processing capacity and screening efficiency of the sieve machine. Trade-offs.FYBS the same or similar configuration, the square swing screen has higher processing capacity and screening efficiency than the general inertial vibrating screen. Its essence is that the machine can artificially control the movement track and retention time of the material on the screen surface, that is, in limited space. The sieve rate is added.

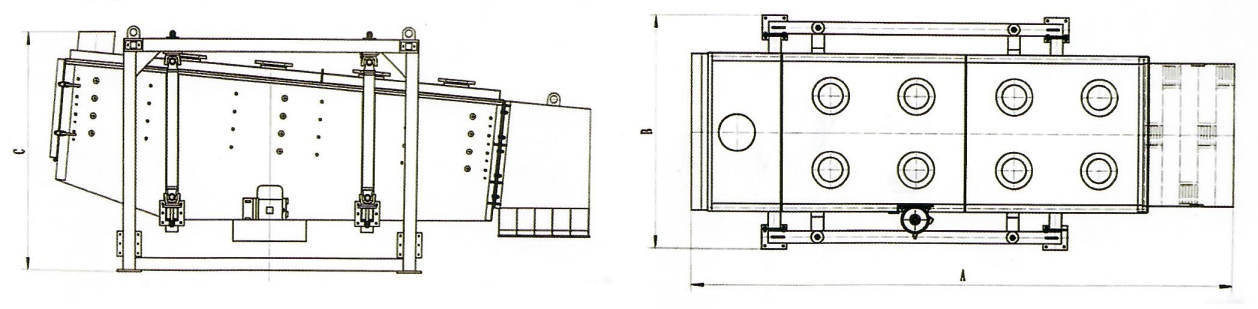

Dimension Drawing:

gyratory screen machine for quartz sand 3
Technical Data:

Model Screening effective area (sqm) Power(kw) Screening angle(degree) Deck Screen inclination rotation frequency Screen box working distance(mm) Dimension (mm)
FYBS1030 3 3









5-8











1-5











180-260











25-60

3842*1700*1917
FYBS1036 3.6 4442*1700*1917
FYBS1230 2.6 4 3842*1900*1917
FYBS1236 4.32 4442*1900*1917
FYBS1530 4.5 5.5 3842*2200*1917
FYBS1536 5.4 4442*2200*1917
FYBS1830 5.4 7.5 3842*2500*1917
FYBS1836 6.48 4442*2500*1917
FYBS2030 6 7.5 3842*2700*1917
FYBS2036 7.2 4442*2700*1917
